Systems

Systems = Functions in a Dojo contract

TL;DR
  • Systems are Dojo contract functions.
  • Systems can pass a world param as their first parameter to access it.
  • Systems engage the world contract to alter models' state.
  • Systems ought to be concise and specific.
  • In most scenarios, systems are stateless.

What are systems?

Within Dojo we define systems as functions within a Dojo contract that act on the world.

Systems play a pivotal role in your world's logic, directly mutating its component states. It's important to understand that to enact these mutations, a system needs explicit permission from the models owner.

Permissions

In order to write data to the world, a system needs explicit permission from the models owner.

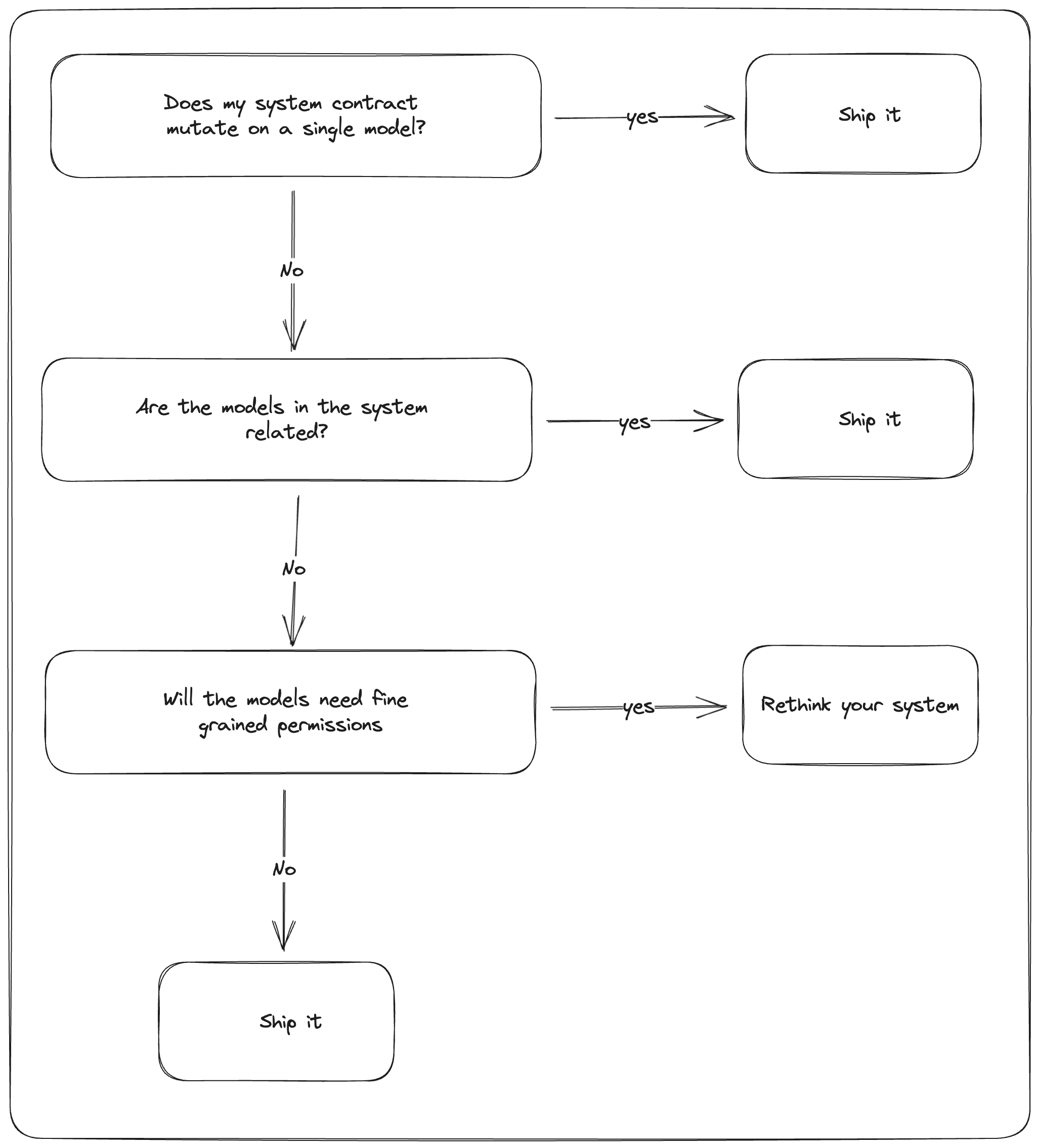

A simple way to think about system design for permissions:

System Permissions

Dojo interface

In a Dojo contract, you must first define a Dojo interface to declare the systems that your contract will expose.

#[starknet::interface]
trait IActions<T> {
    fn spawn(ref self: T);
    fn move(ref self: T, direction: Direction);
}

We can note here the very first parameter, called the world param, which is a special parameter that injects the world dispatcher into the system.

The two world param forms are:

  • ref world: IWorldDispatcher - This form will generate a function with the external state mutability in the ABI.
  • world: @IWorldDispatcher - This form will generate a function with the view state mutability in the ABI.

Usually, systems are using ref world to write data to the world models. However, keep in mind that you are not forced to.

System implementation

To implement the code related to the system, you must be placed inside a #[dojo::contract] and implement the interface you've defined.

#[dojo::contract]
mod actions {
    use super::IActions;

    #[abi(embed_v0)]
    impl ActionsImpl of IActions<ContractState> {
        fn spawn(ref self: ContractState) {
            // Get the default world.
            let mut world = self.world(@"dojo_starter");

            // Get the address of the current caller, possibly the player's address.
            let player = get_caller_address();
            // Retrieve the player's current position from the world.
            let mut position: Position = world.read_model(player);

            // Update the world state with the new data.

            // 1. Move the player's position 10 units in both the x and y direction.
            let new_position = Position {
                player, vec: Vec2 { x: position.vec.x + 10, y: position.vec.y + 10 }
            };

            // Write the new position to the world.
            world.write_model(@new_position);

            // 2. Set the player's remaining moves to 100.
            let moves = Moves {
                player, remaining: 100, last_direction: Direction::None(()), can_move: true
            };

            // Write the new moves to the world.
            world.write_model(@moves);
        }

        fn move(ref self: ContractState, direction: Direction) {
            // Get the address of the current caller, possibly the player's address.

            let mut world = self.world(@"dojo_starter");

            let player = get_caller_address();

            // Retrieve the player's current position and moves data from the world.
            let mut position: Position = world.read_model(player);
            let mut moves: Moves = world.read_model(player);

            // Deduct one from the player's remaining moves.
            moves.remaining -= 1;

            // Update the last direction the player moved in.
            moves.last_direction = direction;

            // Calculate the player's next position based on the provided direction.
            let next = next_position(position, direction);

            // Write the new position to the world.
            world.write_model(@next);

            // Write the new moves to the world.
            world.write_model(@moves);

            // Emit an event to the world to notify about the player's move.
            world.emit_event(@Moved { player, direction });
        }
    }
}

Inside the system's implementation, you can use the Dojo api to easily interact with the world.
